Create a Packaging Specification

Overview

Packaging Specifications provide a centralized place to maintain information about individual packaging components.

Packaging Specifications use the same general specification framework as Raw Material and Finished Good specifications and are accessed from:

Specifications → Packaging

How to Create a Packaging Specification

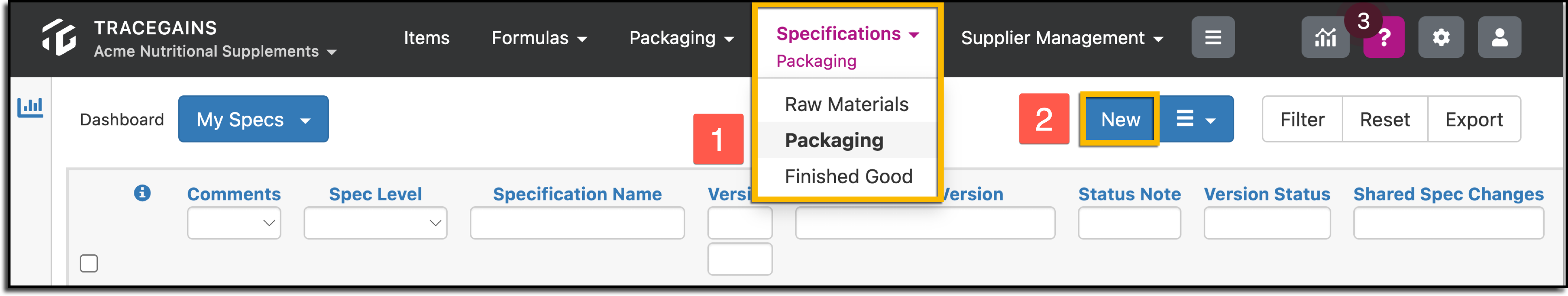

Step 1: Go to Specifications > Packaging.

Step 2: Select New to begin creating a Packaging Specification.

pack spec 1.png

Step 3: Select or Create an Item

In the Create window, choose how you want to associate an item with the Packaging Specification:

  • Select Existing Item — Select this option if the packaging item already exists in TraceGains.
  • Create New Item — Select this option if you need to create a new packaging item.

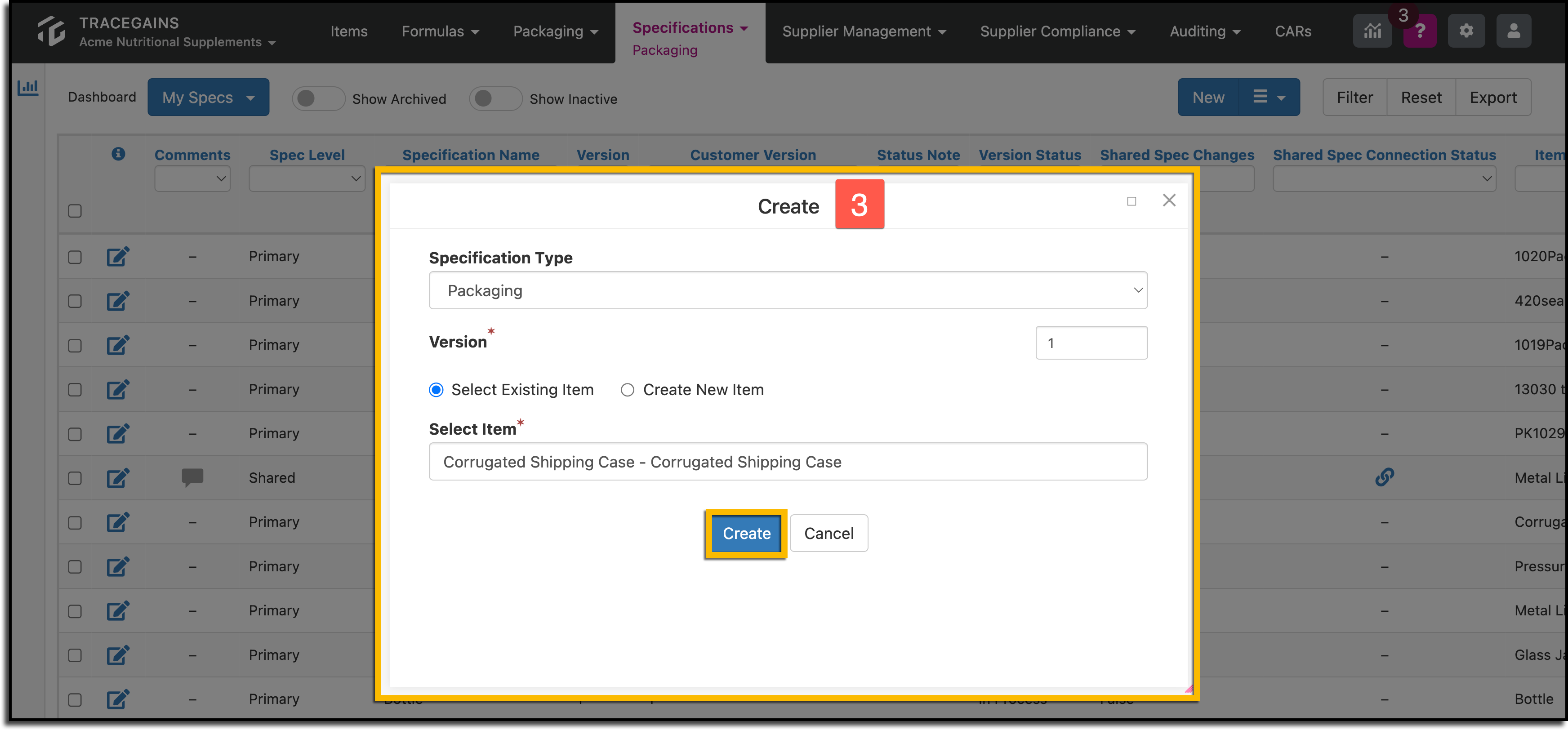

Select an Existing Item

Select Select Existing Item, then select the packaging item you want to associate with the specification.

Review the Specification Type and Version, then select Create.

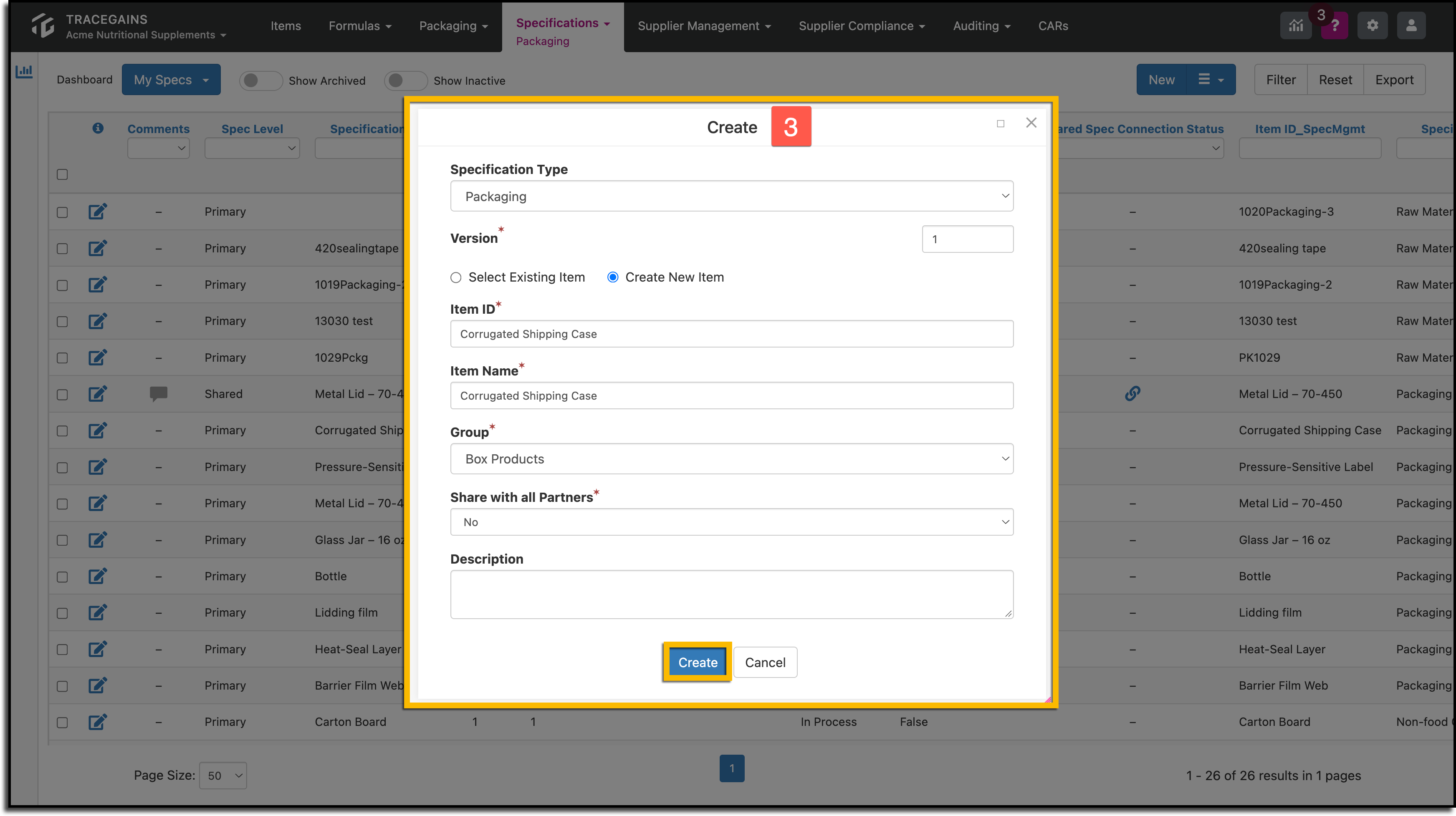

Create a New Item

Select Create New Item, then complete the required item information:

  • Item ID
  • Item Name
  • Group
  • Share with all Partners
  • Description, if applicable

Review the Specification Type and Version, then select Create.

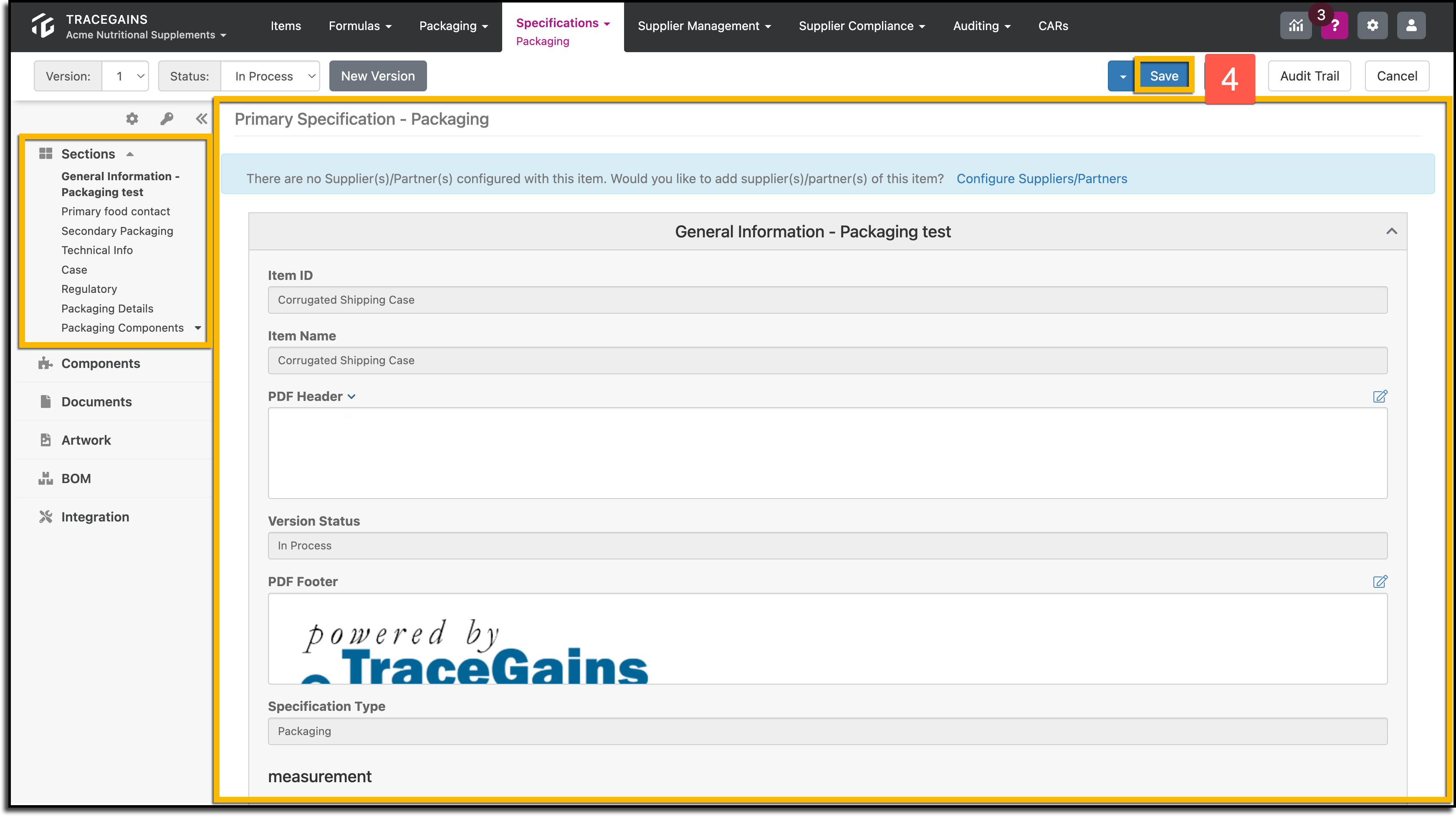

Step 4: Complete the Packaging Specification

After creating the specification, complete the applicable sections and fields for the packaging component.

The sections and information available in your specification depend on the selected Specification Type and your site's configuration.

When you're finished making changes, select Save.


Next Steps

Once you've created your Packaging Specifications, you can use packaging components as part of your broader packaging workflow.

  • See Assemblies to learn how packaging components can be organized into packaging configurations.
  • See Assembly Claims for information about managing claims associated with packaging assemblies.
